When charging stops
Your Tranquility starts, but the house batteries do not recharge

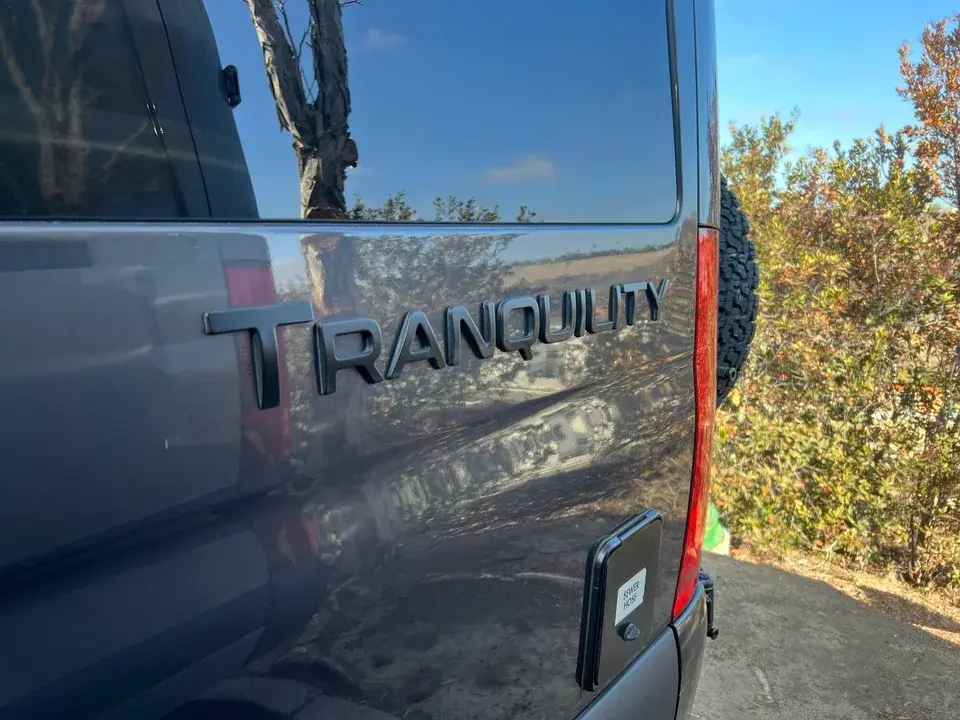

You head out in your Thor Motor Coach Tranquility expecting the drive to replenish the camper batteries. Instead, the house battery reading stays low, an electrical warning appears, or you arrive with less usable power than expected. It is tempting to blame the alternator immediately.
The engine starting and the living-area battery bank charging are different observations. A running engine does not establish that current is reaching the house batteries. The next question is where charging is being interrupted, rather than which expensive component to order first.
If your Tranquility is equipped with a Mastervolt system and a Balmar auxiliary alternator, the alternator is one part of a larger installation. Identifying the battery, regulator, charging connections and monitoring equipment comes before choosing a repair. Equipment and modifications vary, so the vehicle's model year and installed component labels matter.
Readings need context
Does a 0% house battery reading prove the alternator has failed?
No. A 0% state-of-charge reading is a reason to investigate, but it does not identify the failed component. The displayed percentage, voltage, current and active warnings need to be assessed together. A photograph cannot establish whether the problem is charging, battery protection or the information reaching the display.

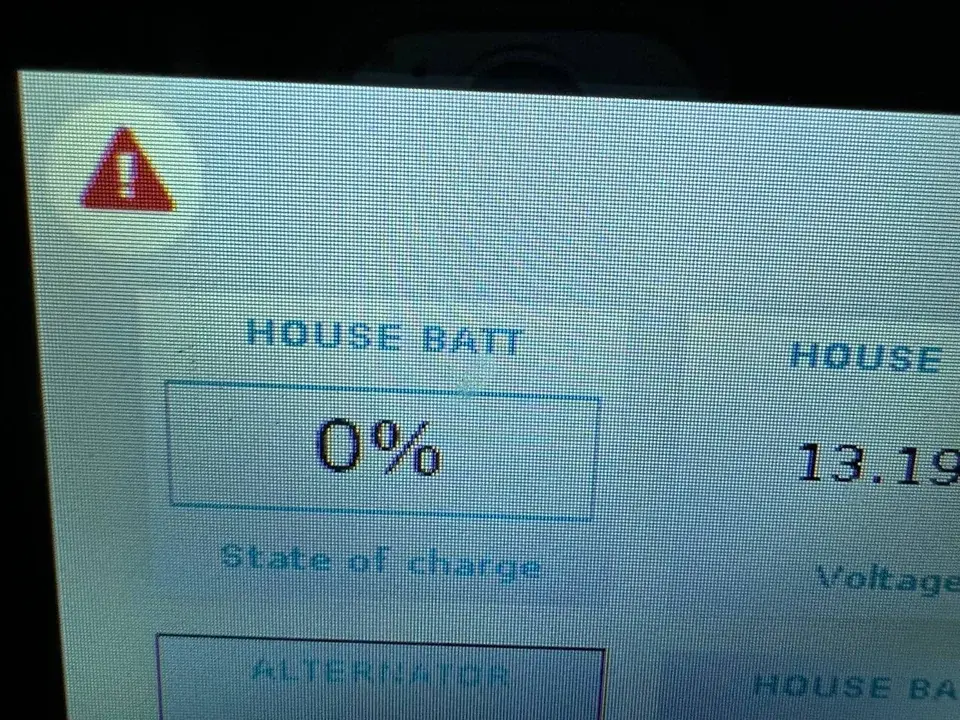

In the supplied photo, the house battery percentage reads 0% while a voltage value is also visible. These are different measurements; the voltage value alone does not establish usable battery capacity or prove that the bank is accepting a charge. Likewise, the percentage alone is not an alternator test.
A useful assessment compares the monitor with the battery's actual condition and the current entering or leaving the bank. It also checks whether the display is receiving the correct information. A monitoring or configuration problem is a possibility to investigate, not a diagnosis that can be made from this image.
Save a photo of the complete screen and any warning text before your visit. Tell us whether the engine was running, whether shore power was connected and which camper appliances were operating when the reading appeared.
Identify the installed system
Mastervolt and Balmar: what each component does
Mastervolt is a brand, rather than the name of one complete charging configuration. Its equipment can include batteries, inverter/chargers and displays. A Mastervolt logo on a screen does not identify the battery bank capacity, alternator output or the regulator installed under the hood.
For a concrete battery specification example, Mastervolt publishes the following figures for its MLI Ultra 12/6000. This is a named reference product, not confirmation that this battery is installed in the photographed Tranquility.
| Specification | Published detail |
|---|---|
| Battery chemistry | Lithium iron phosphate (LiFePO4) |
| Nominal voltage | 12V |
| Nominal capacity | 460Ah |
| Nominal energy | 6,000Wh (6kWh) |
These figures describe storage capacity, not the current delivered by an alternator. Actual charging depends on the installed equipment and operating conditions. We need the component labels to select the applicable manuals.
A monitor has a different role. For example, Mastervolt's EasyView 5 provides a touchscreen interface and a warning/alarm log. Seeing the brand on a display does not confirm which battery is connected.
The regulator also matters
As another equipment example, Balmar's MC-618 manual describes an external regulator for compatible 12V alternators, with selectable battery profiles and optional temperature sensing. It shows why charging controls belong in the assessment. The photos do not establish that an MC-618 is fitted to this van.
On a lithium installation, battery protection is relevant too. For example, Mastervolt specifies integrated battery management, voltage and temperature protection, and a required safety relay for its MLI Ultra 12/6000. The installed battery must be identified before applying its operating requirements.
Find the cause first
What to check before approving an alternator replacement
Balmar's troubleshooting guidance starts with the condition of wiring, fuses and connections before moving into alternator or regulator testing. That supports a straightforward approach: investigate the charging circuit before condemning the alternator.
The charging path
Check whether output reaches the house battery bank and whether the connections are sound.
Charging controls
Review the installed regulator and its inputs against the correct equipment manual.
The battery & monitor
Compare battery condition, protection status and reported readings rather than treating one screen value as a component diagnosis.
Describe which charging sources still work. A problem that appears only while driving is different from a bank that will not charge from any source. Whether shore power or solar still contributes is useful evidence, but it does not by itself identify the failed part.
The alternator can still be the cause. The point of diagnosis is to establish that with evidence, or to locate a different fault before you pay for a replacement that leaves the original problem unresolved.
Sprinter Van Solutions / San Diego
Free RV electrical diagnostics for your charging concern
Sprinter Van Solutions offers free RV electrical diagnostics. If your Thor Tranquility has stopped charging its house batteries from the alternator, call us or request an appointment. Explain what changed, what the monitor shows and whether the problem is constant or intermittent.
You do not need to decide which component has failed before contacting us. Bring the information you have, including a previous estimate if another shop has already recommended parts. We can discuss the concern and the next step for your RV.
What to bring to your visit
- Thor Tranquility model year and VIN
- Photos of the battery, alternator and regulator labels, if available
- Complete display screens and warning messages
- When the problem appears and whether shore power or solar still charges
- Recent electrical work, battery changes or an existing repair estimate
For broader vehicle and camper work, visit our Thor Tranquility service and repair page. For this visit, focus on the charging symptom: there is no need to commit to an upgrade or replacement before the cause is understood.
Common questions
Tranquility battery charging questions
Should I replace the alternator if the house batteries stop charging?
Have the system diagnosed first. An alternator fault is possible, but the battery, connections and charging controls also need to be considered before choosing a replacement.
Does every Thor Tranquility use the same Mastervolt and Balmar setup?
Do not assume a single configuration. Identify your model year and installed equipment, including any changes made after delivery. The example specifications in this guide are not a build sheet for your van.
What does “No name” on the Mastervolt screen mean?

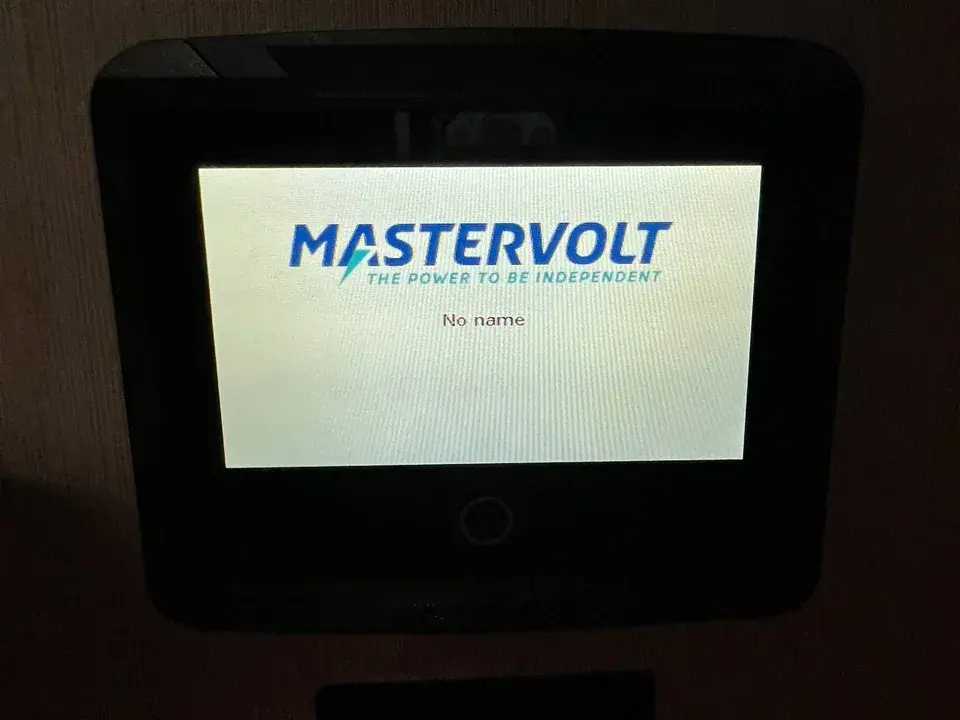

The supplied photo shows those words on a Mastervolt startup screen. That image alone does not establish a fault code or identify a failed component. Capture any persistent warning messages and the normal operating screen for assessment.
Can the battery charge on shore power but not while driving?
Different charging sources can behave differently. Tell us which ones still work so the affected path can be investigated. Shore-power charging alone does not prove that the alternator itself has failed.
Do you offer free RV electrical diagnostics in San Diego?
Yes. Sprinter Van Solutions offers free RV electrical diagnostics. Call (619) 949-7564 or use the appointment link to arrange a visit and describe your charging concern.
Can I get a second opinion on an alternator replacement quote?
Contact us and bring the estimate, any recorded test results and your vehicle information. The aim is to understand the charging fault before you approve expensive replacement parts.
